High Strength Steel Bar of Precast Beams/Railway Sleepers/Utility Poles
1 Diameter RangePC steel bars are typically available in diameters ranging from 6 mm to 20 mm, meeting various prestressing requirements.Common Sizes：6 mm, 7 mm, 8 mm, 9 mm, 10 mm, 11 mm, 12 mm, 13 mm, 14 mm, 15 mm, 16 mm, 18 mm, and 20 mm.
share to:
Product Information
1 Diameter Range
PC steel bars are typically available in diameters ranging from 6 mm to 20 mm, meeting various prestressing requirements.
Common Sizes：6 mm, 7 mm, 8 mm, 9 mm, 10 mm, 11 mm, 12 mm, 13 mm, 14 mm, 15 mm, 16 mm, 18 mm, and 20 mm.
2 Strength Grades
Standard tensile strength grades include: 1420 MPa ,1470 MPa , 1570 MPa (most commonly used)
Higher grades are available up to:1,860 MPa
Yield Strength ≥ 1,280 MPa (may vary slightly depending on applicable standards)
3Surface Types

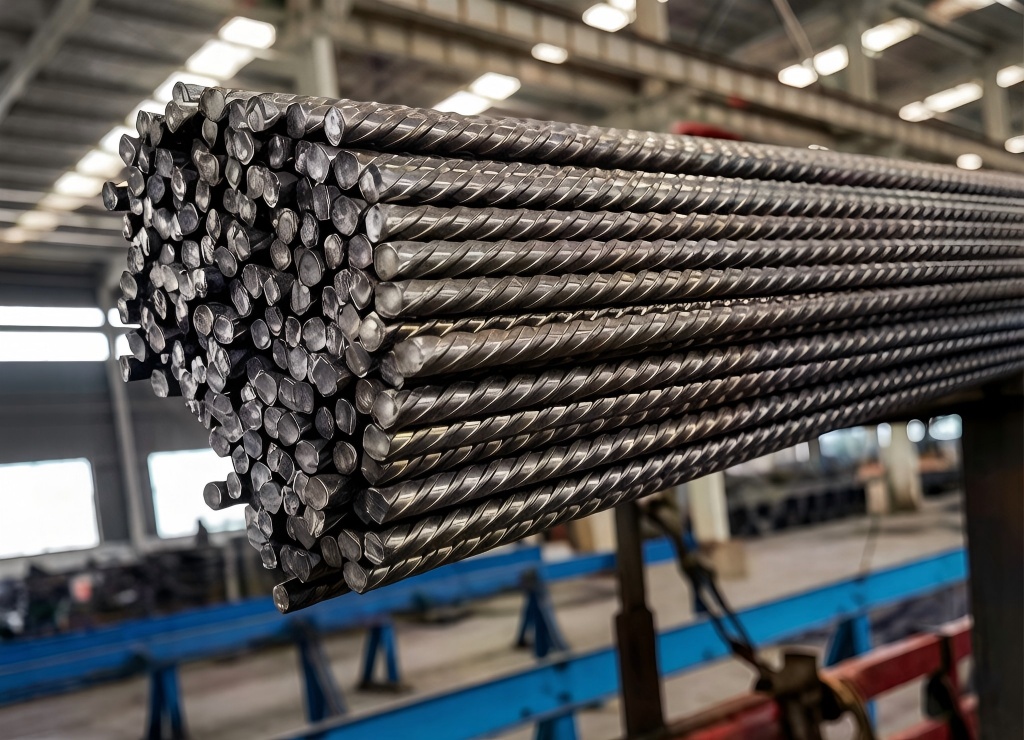

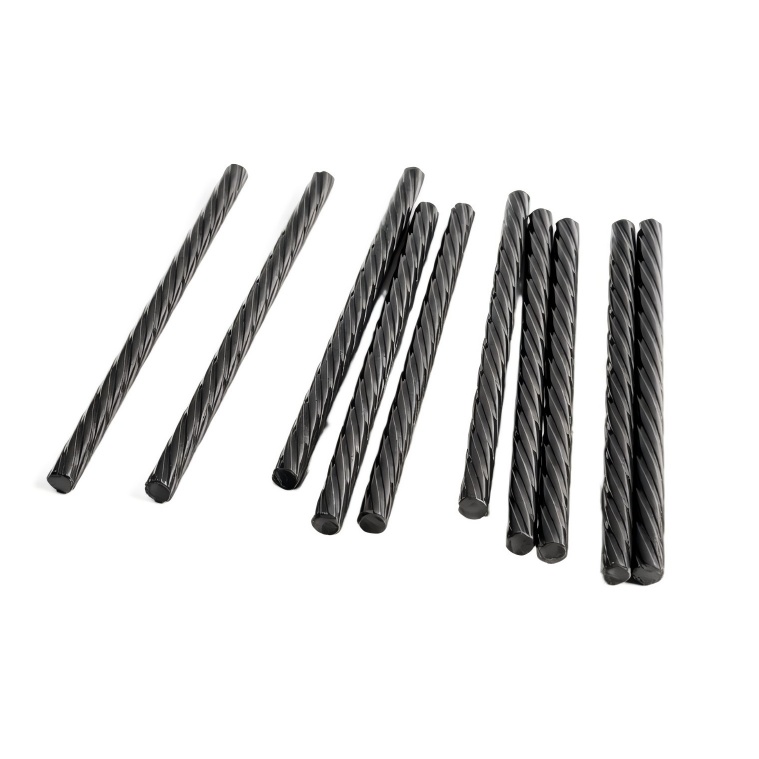

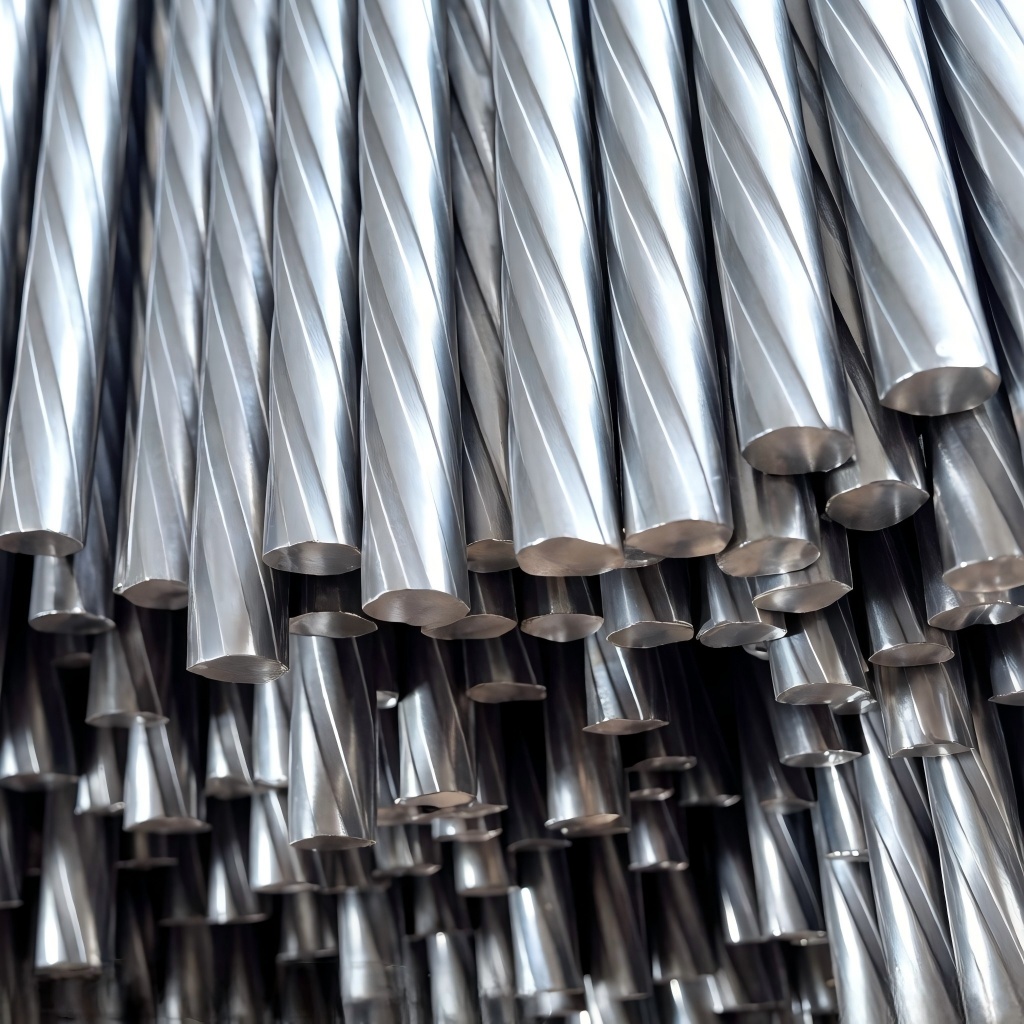

Spiral Ribbed Type
1)Features continuous spiral ribs along the surface of the bar.
2)Enhances mechanical interlock and bonding strength with concrete.
3)Commonly referred to as Spiral Ribbed PC Steel Bar.

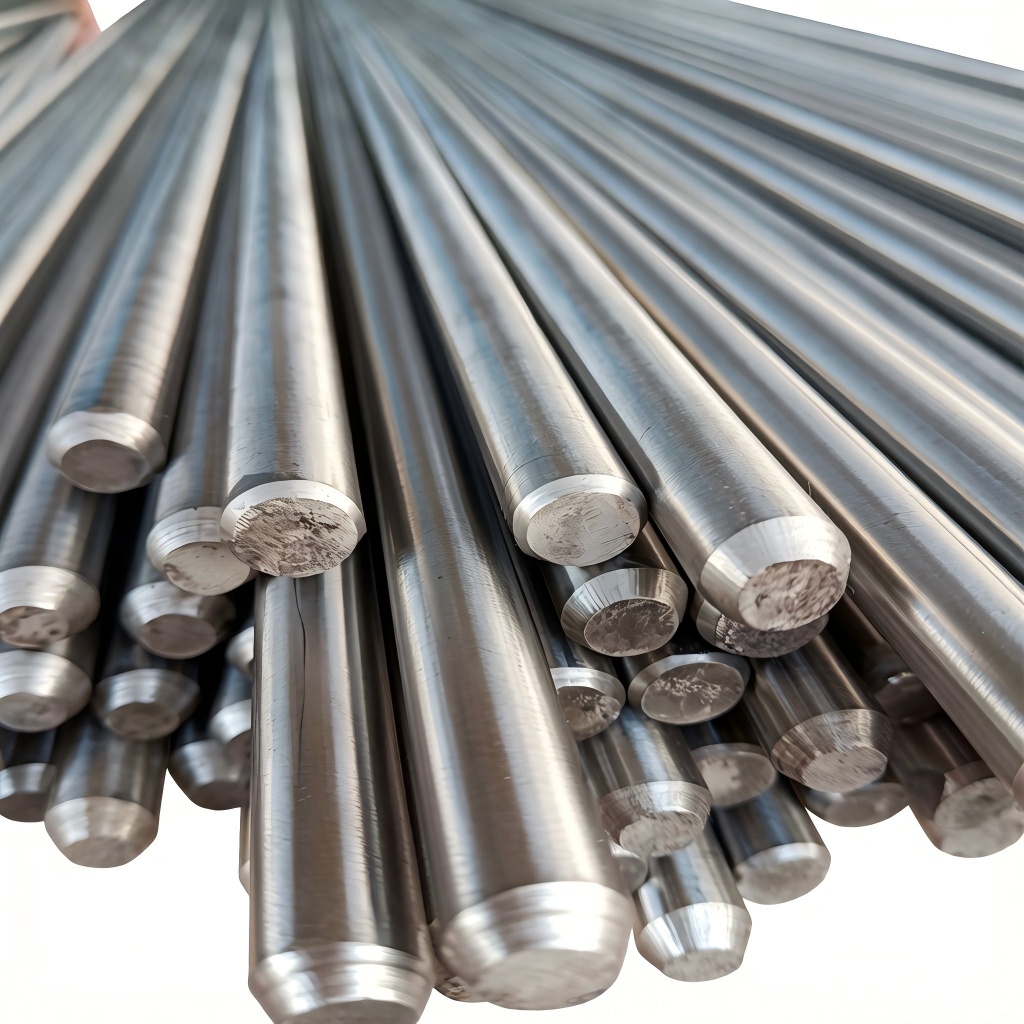

Plain Surface Type
1)Features a smooth, rib-free surface.
2)Prestressing force is transferred primarily through end anchorage systems rather than bond action.
3)Suitable for specific prestressed concrete applications requiring anchored load transfer.
4 Company info
Changsha Dladto Rebar Splice Co., Ltd.'s Fastener Division is a one-stop fastener solutions provider. Its product portfolio covers prestressed concrete reinforcing bars, threaded connectors, architectural hardware, and other related products. The company has six production bases equipped with over 20 high-standard automated production lines, with an annual production capacity of 300,000 tons of prestressed reinforcing bars, 2 million connectors per month, and 300,000 tons of fastener assemblies annually. All products are manufactured in strict accordance with internationally recognized standards and certifications (including ISO 9001, CE, ASTM, DIN, ACI 318, and JGJ 107). Our products have been successfully applied to over 200 major infrastructure projects, including the Hong Kong-Zhuhai-Macau Bridge connection project and the Southeast Asian high-speed rail project. We also maintain long-term cooperative relationships with leading companies such as China State Construction Engineering Corporation (CSCEC) and China Railway Construction Corporation (CRCC), serving customers in more than 50 countries and regions worldwide.

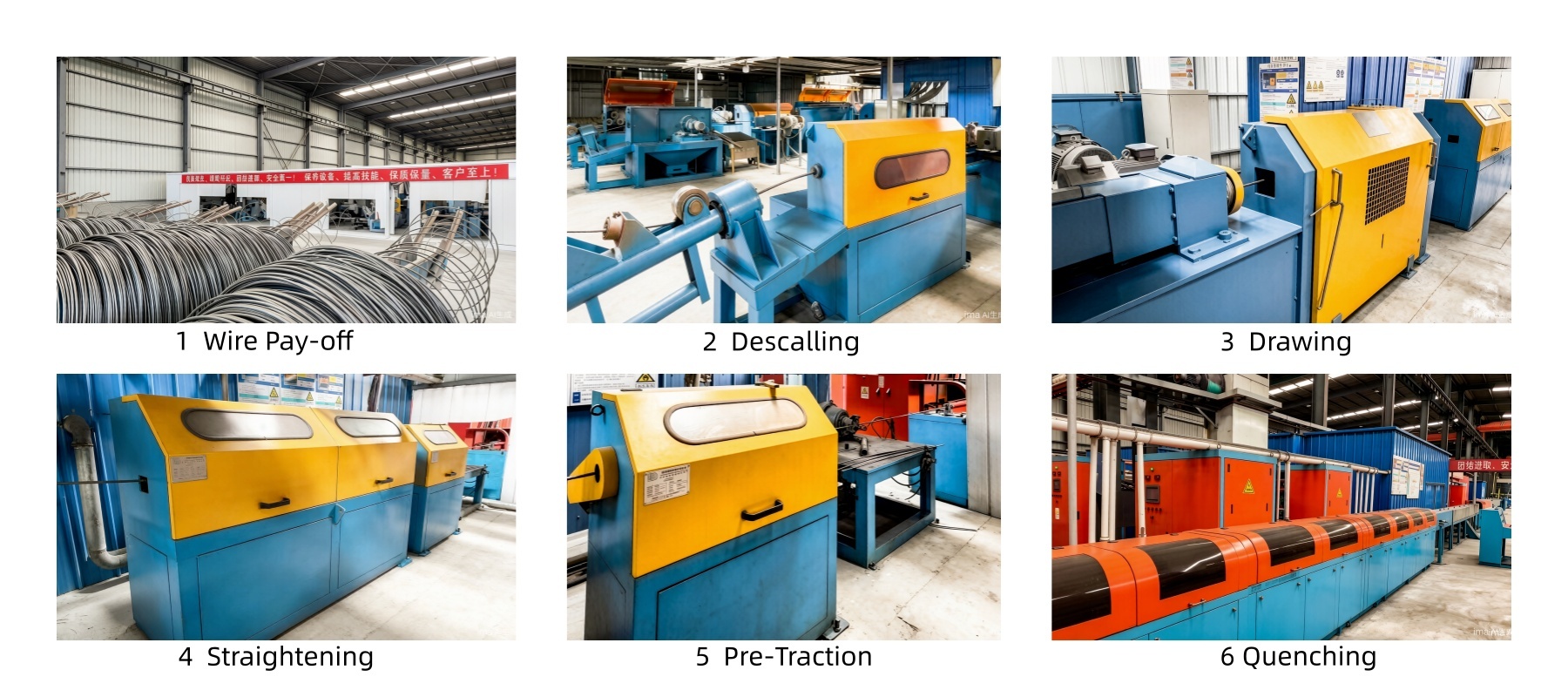

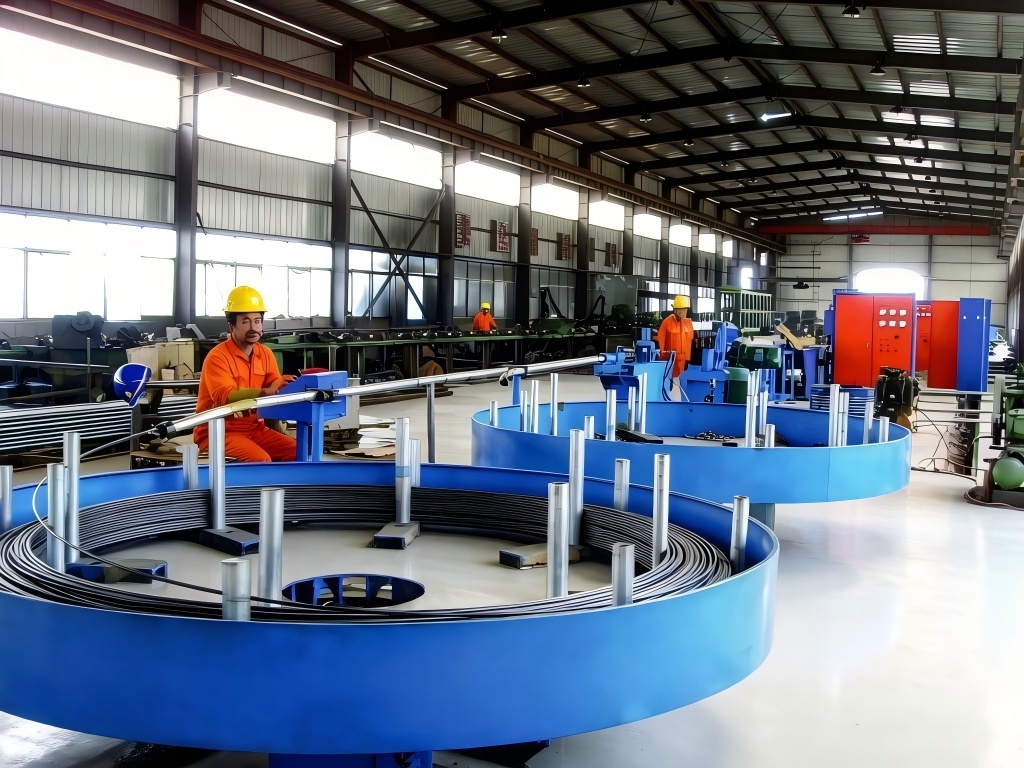

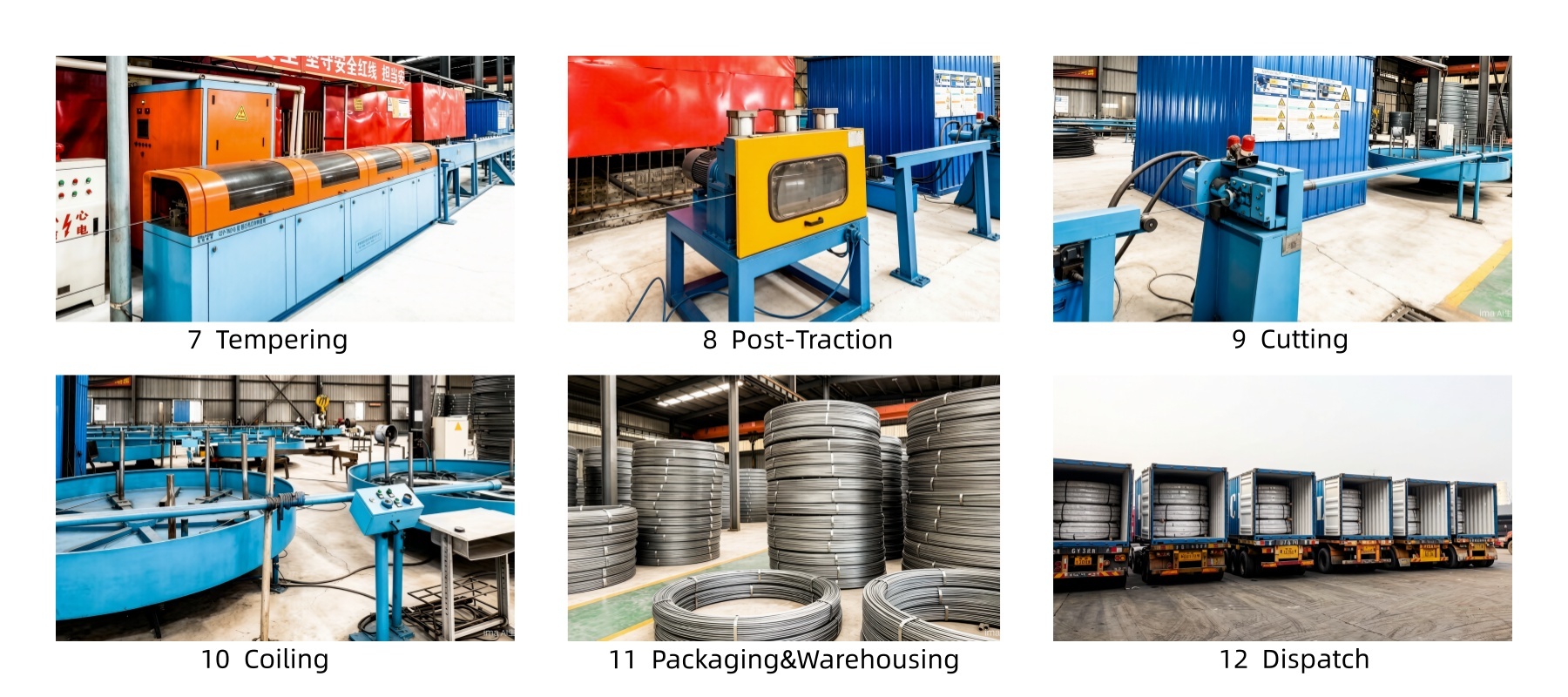

5 Production Workflow

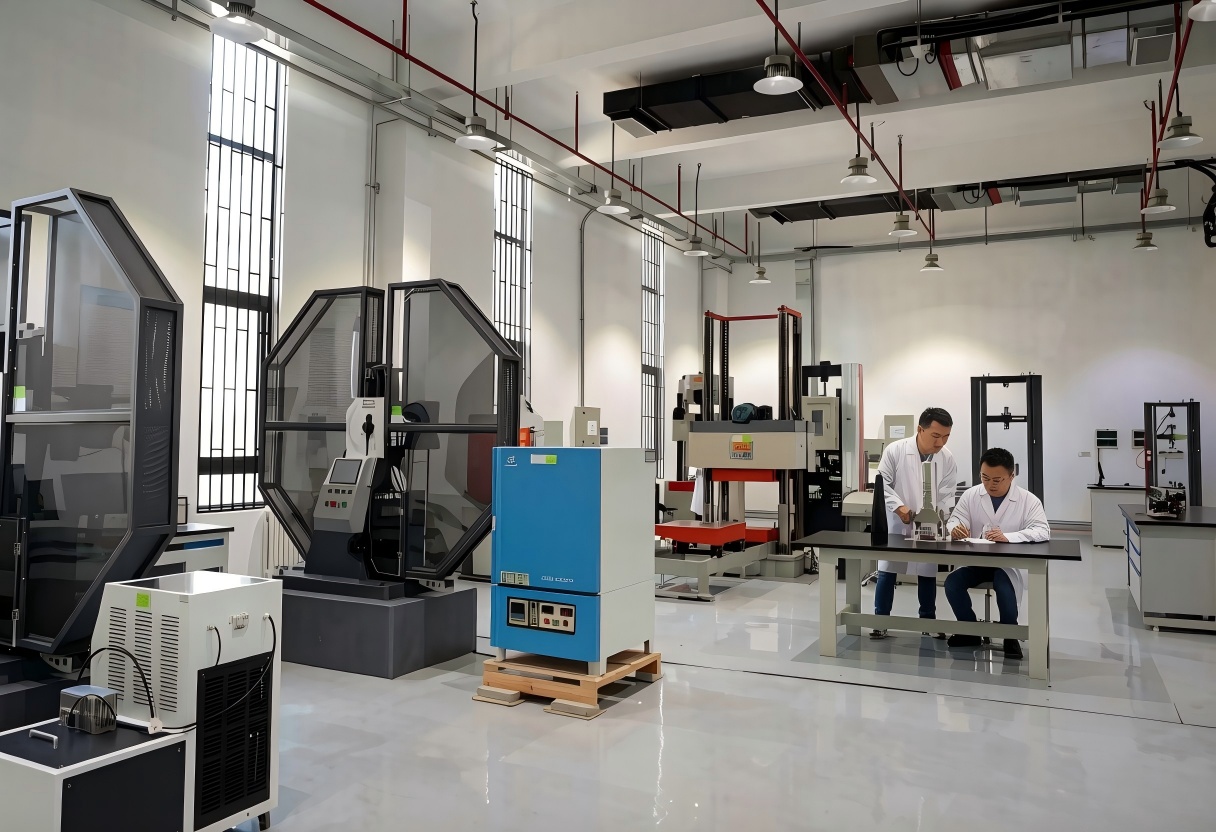

6 Quality Inspection

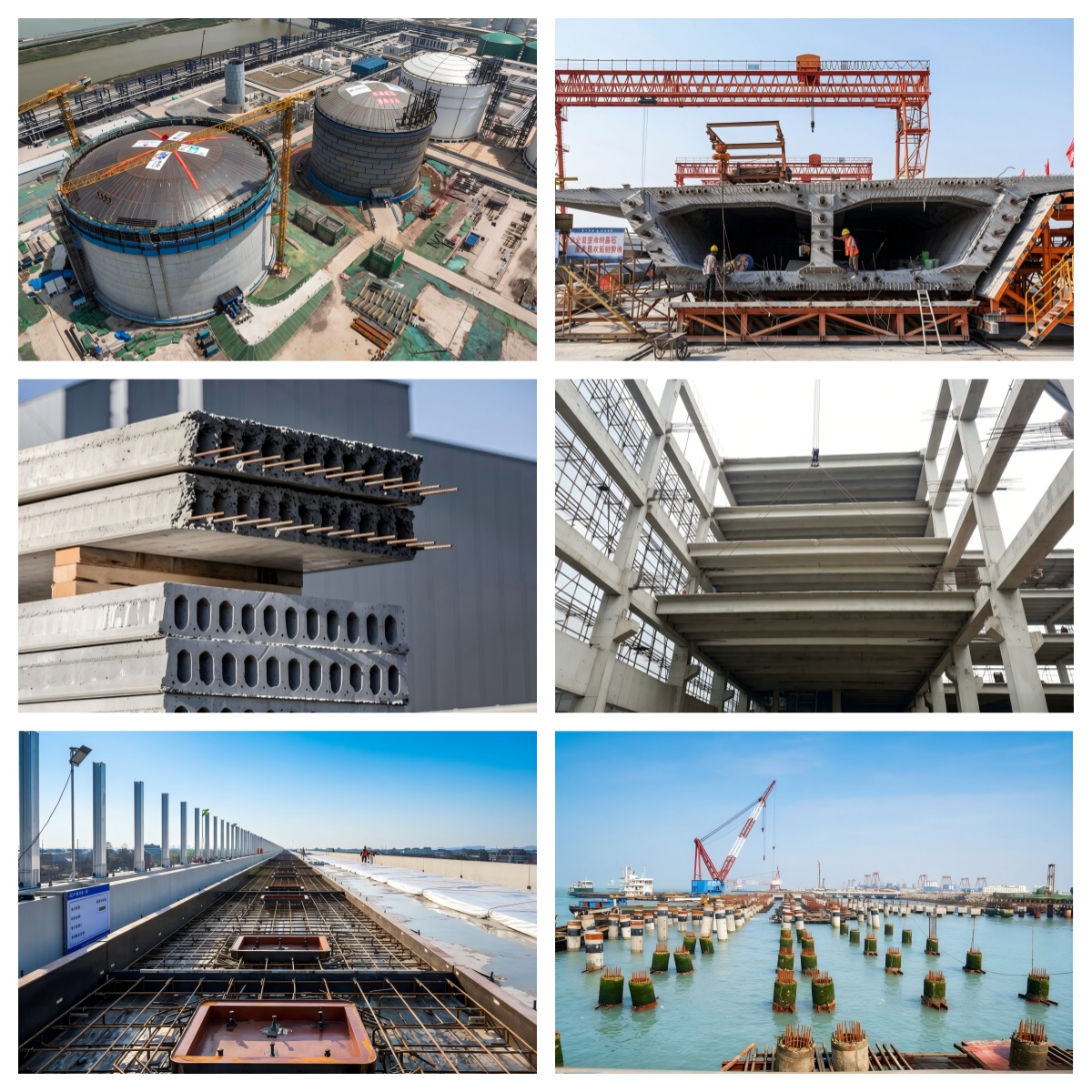

7 Application areas

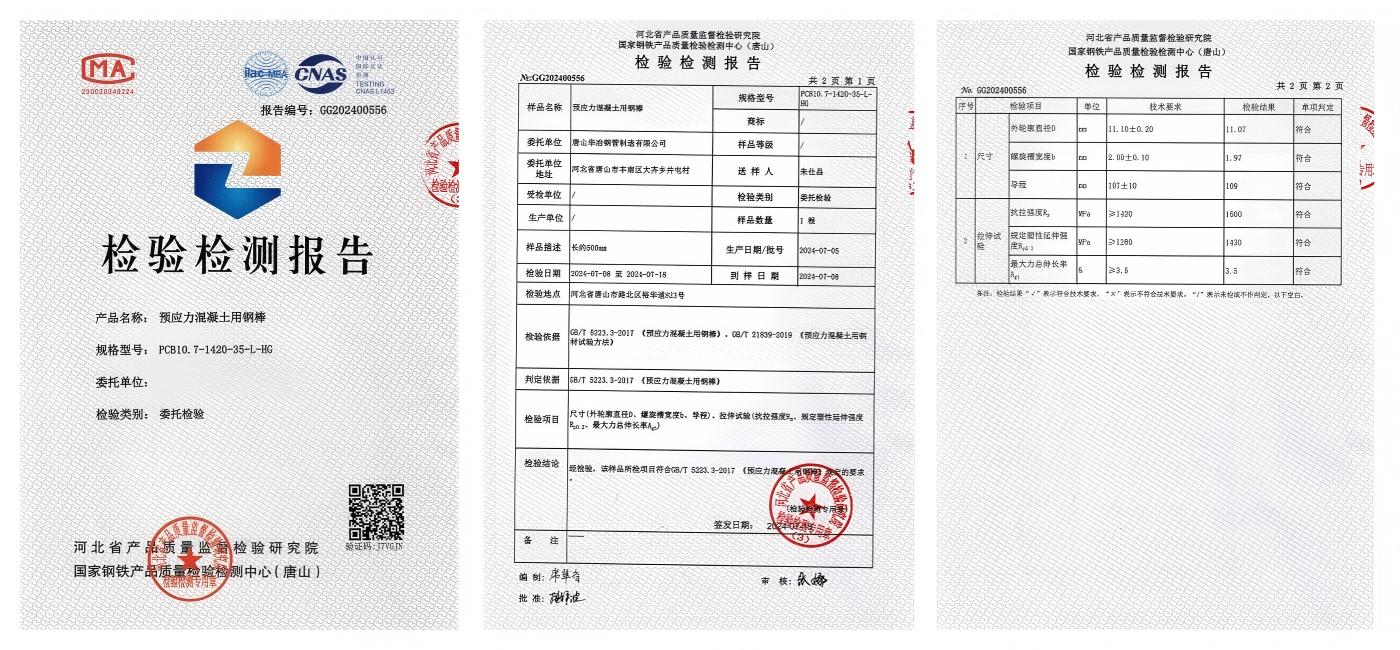

8.Certification
